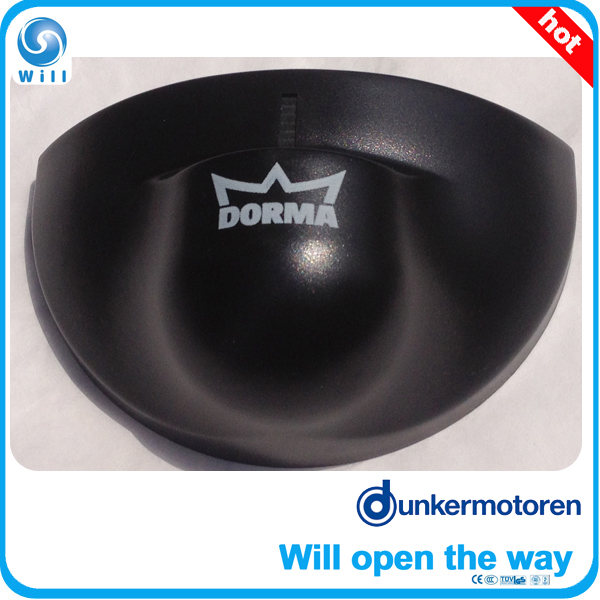

Manul Operation for Ying6(eagle6)

Specifications:

Techlology: Microwave and Microprocessor
Principle: Doppler shift phenomenon
Transmitting frequency: 24.125GHz
Launch power density: 5mW/cm
Installation height : Below 3.5M
Supply Voltage: 12~24V AC/12~30V DC
Detection adjustment angle: 30,45 ,60
Power consumption: 2W(Max)
The biggest detectation range : 4m (width)X3m(depth)
Temperature range: -40C~+60C(relative humidity:0% to 95%,non-condensing)
Output relay maintain time: 0.5s
IP protection rate: IP54
Accessories: Wire line (3m)screw (2pcs)module(1pc)user manual (1pc) .
